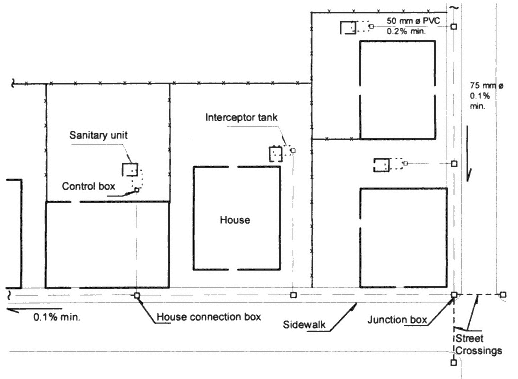

Figure 10.2
Typical ASAS layout |
|
|
|
|
|
|
|
|
To calculate pipe diameters, any of the standard formulae may be used. That most frequently used in Colombia is Manning's equation. |
|
|
|
|
|
|
|
|
10.3.10
Interceptor Tank Design |
|
|
|
|
|
|
|
|
The dimensions of interceptor tanks are calculated according to Stokes's law for settling tanks. Length, width and minimum liquid depth are proportioned so that the 0.02 mm particle will settle with the maximum discharge rate corresponding to the unit load calculated for the sewer design. This needs iterative calculations because the unit load depends on the surface area of the tank. It is therefore easier to start with a known tank design and adjust its length if the number of fixtures is different. Disturbances caused by vertical drains, even with the sudden discharge |
|
|
|
|
|
